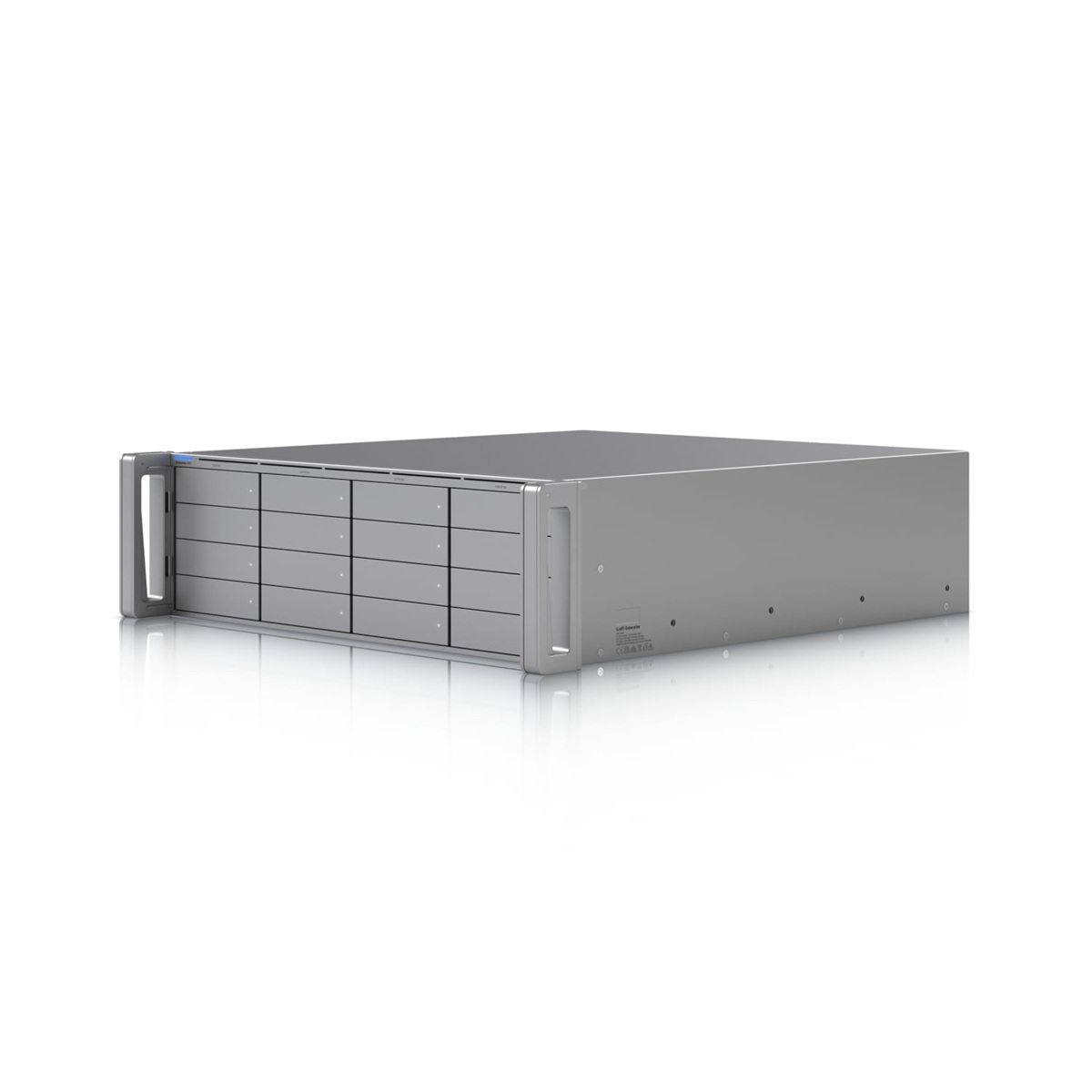

Ubiquiti UniFi Enterprise 3U Network Video Recorder (ENVR)

Ubiquiti ENVR Enterprise Network Video Recorder

The Ubiquiti ENVR Enterprise Network Video Recorder is a video recorder designed to support complex, widespread IP surveillance systems spanning multiple buildings across a campus. The ENVR is 3U in size and can support up to 70 x 4K cameras or 210 x full-HD cameras running simultaneously, offering comprehensive, robust and centrally managed control and storage across the entire surveillance network.

The Enterprise Video Recorder ENVR represents an advancement on Ubiquiti’s previous NVR offerings (the UNVR and the UNVR-PRO), geared specifically towards enterprise-level installations. The ENVR can support 70 x 4K cameras or 210 x full-HD cameras recording simultaneously, and stores this footage by virtue of its 16 x HDD / SDD bays.

For redundancy and resilience, the ENVR features 2 x hot-swappable PSUs to ensure that the surveillance network can still operate even in case of power failure, and can also utilise its multiple HDD/SSDs to support RAID (Redundant Array of Independent Discs) storage technology to protect against data loss.

For network connectivity, the ENVR features 2 x 1/10G SFP+ ports for high-speed fibre uplinks, as well as 1 x 1/2.5/10G RJ45 port for Ethernet connections. Each port features illuminating LEDs to indicate port status at-a-glance, as well as a bank of device status LEDs to indicate power, boot and adoption status and firmware upgrades.

Key Features

• Supports up to 70 x 4K cameras
• Supports up to 140 x 2K cameras
• Supports up to 210 x HD cameras
• 16 x 3.5″ HDD / SSD drive bays
• 2 x 10G SFP+ uplinks
• 1 x 10GbE RJ45 port
• 2 x Hot-swappable PSUs
• RAID storage technology

Specifications

Mechanical

• Dimensions: 481.4 x 480 x 132 mm (19 x 18.9 x 5.2″)
• Weight: 16.6 kg (36.6 lb)
• Enclosure material: SGCC steel
• Mount material: Aluminum
• Slide rails support: Supports 482.6 mm (19″) four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1000 mm (25.6–39.4”)

Hardware

• Management interface: Ethernet In-Band
• Networking interface:
  • (1) 1/2.5/5/10 GbE RJ45 port
  • (2) 1/10 GbE SFP+ ports
• Power method: Dual AC power adapter, 12V, 45A
• Power supply: Hot-swappable 550W CRPS
• Supported voltage range: 100—240V AC
• Max. power consumption: 410W
• Max. power budget for Drives: 310W
• ESD/EMP protection: Air: ± 12kV, contact: ± 8kV
• Button: Factory reset
• Ambient operating temperature: -5 to 40° C (23 to 104° F)
• Ambient operating humidity: 5 to 95% noncondensing
• Certifications: FCC, CE, IC

Capacity

• HD cameras: 210
• 2K cameras: 140
• 4K cameras: 70

LEDs

• System:
  • (1) Power: blue/white
  • Flashing white: bootup in progress
  • Flashing blue: firmware upgrading
  • Steady white: factory defaults, awaiting adoption
  • Steady blue: device is adopted
• Ethernet: Green (link/activity)
• SFP+: Green (link/activity)
• HDD:
  • White: disk detected
  • Amber: disk error

Standard Warranty: 1-Years
