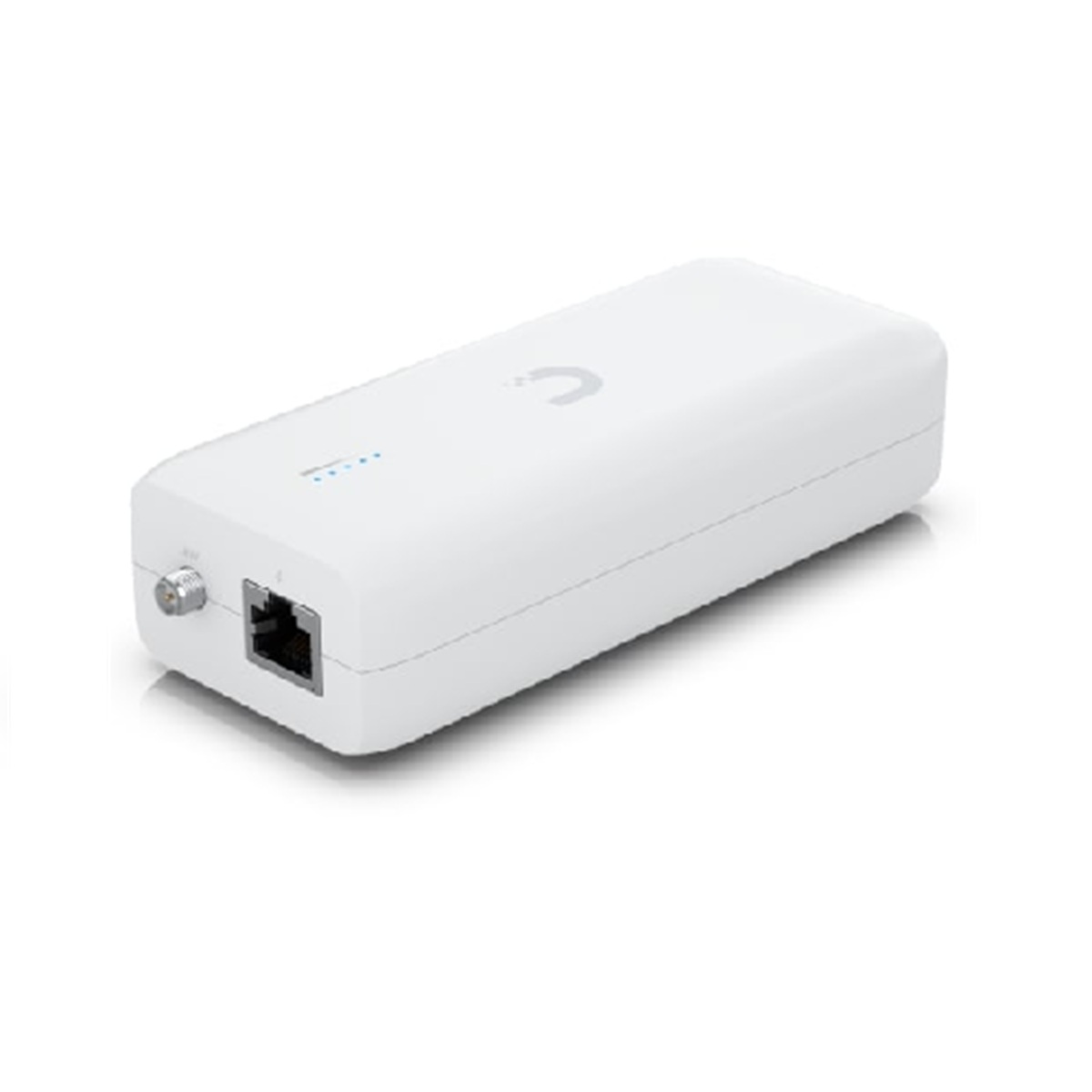

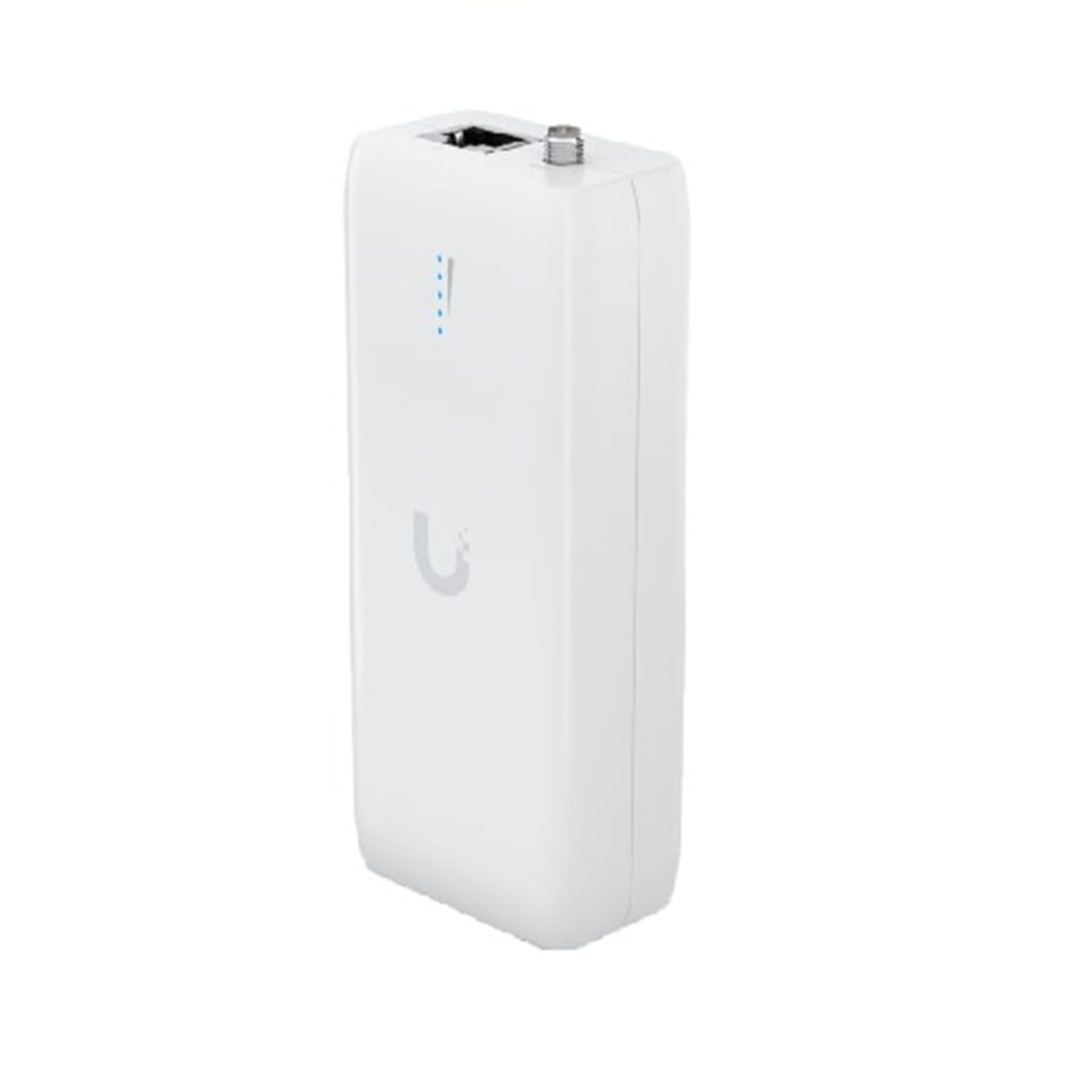

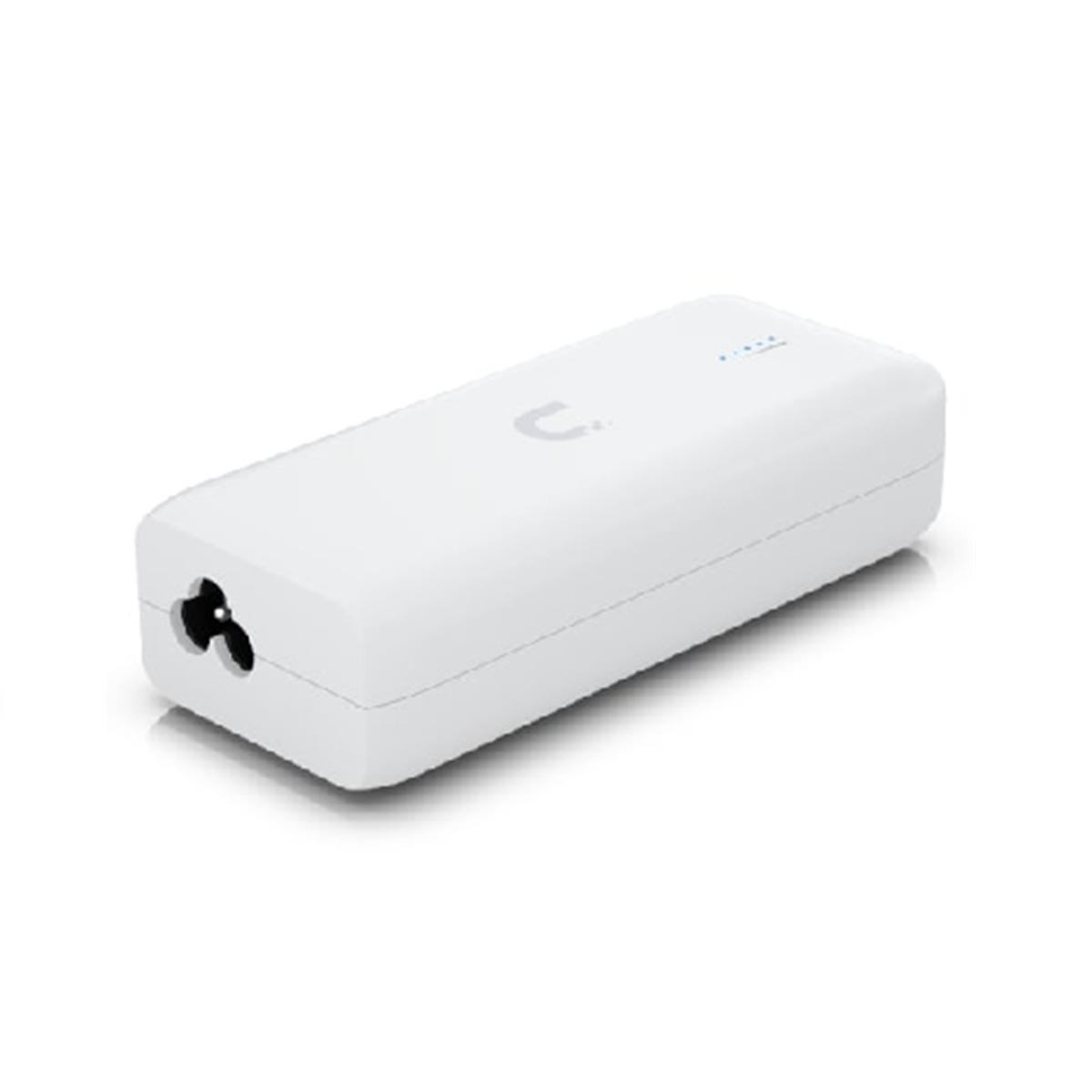

Ubiquiti UDB Gigabit 5GHz WiFi Device Bridge/Link

Mechanical

Dimensions

• 130 x 55 x 34 mm (5.1 x 2.2 x 1.3 in.)

Weight

• 200 g (7.1 oz.)

Enclosure material

• Polycarbonate

Mount material

• Polycarbonate

Hardware

Management interface

• WiFi

Networking interface

• (1) GbE RJ45 port

PoE interface

• (1) Passive PoE output

Button

• (1) Factory-reset

LED

• (4) Blue: signal
• (1) White/blue: indicator

Power method

• 100—240V AC, 0.45A Max., 50/60 Hz

Max. power consumption

• AC input: 25W
• Excluding PoE output: 10W

Max. PoE wattage per port

• 15W

Supported voltage range

• 100—240V AC

WiFi standards

• 802.11a/n/ac

Max. TX power

• 5 GHz: 21 dBm

MIMO

• 5 GHz: 2 x 2

Max. data rate

• 5 GHz: 866.7 Mbps (BW80)

Antenna gain

• 5 GHz: Internal antenna : 5 dBi / External omni antenna : 4 dBi

Antenna

• (1) Internal antenna
• (1) RP-SMA connector for external omni-antenna

Mounting

• Wall (Included)

Ambient operating temperature

• -10 to 40° C (14 to 104° F)

Ambient operating humidity

• 5 to 95% non-condensing

Certifications

• CE, FCC, IC

Supported Data Rates

802.11a

• 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

• 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

802.11ac

• 6.5 Mbps to 866.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
