The Ubiquiti UniFi UBB Outdoor 60Ghz 17.2dBi WiFi Point-To-Point Link is the ideal solution for high-throughput connectivity with a range of up to 500m. Integration with the UniFi Controller makes bridging two networks seamless. Comprised of two (2) pre-paired endpoint devices, the UBB delivers a Point-to-Point (PtP) link – up to 1.7+ Gbps bi-directional – using 802.11ad technology on the low-interference 60 GHz radio band. For backup, a 5 GHz radio using 802.11ac (WiFi 5) technology is available.

Key Features

• 60GHz Operating Frequency
  The 60GHz band attenuates quickly due to atmospheric absorption. When a 60GHz radio – such as the UBB – uses a highly directional antenna, interference from other directions is also attenuated. The 60 GHz band thus offers extremely high transmission capacity as a wireless wire.
• Wireless Link Redundancy
  60 GHz is highly directional and any obstacle in the line of sight – even rain – can drop signal levels. To maintain connectivity, the UBB can fail over to the 5 GHz radio. The 5 GHz radio band propagates better and uses radio wave reflections and refractions more effectively, although it offers lower maximum throughput.
• Pre-Paired Configuration
  Setup is quick and easy: the UBB radios are pre-paired out of the box so you can use the UniFi app for simultaneous adoption. The UniFi Controller software enables intuitive management of individual UniFi devices and site-wide deployments.
• Sleek Industrial Design

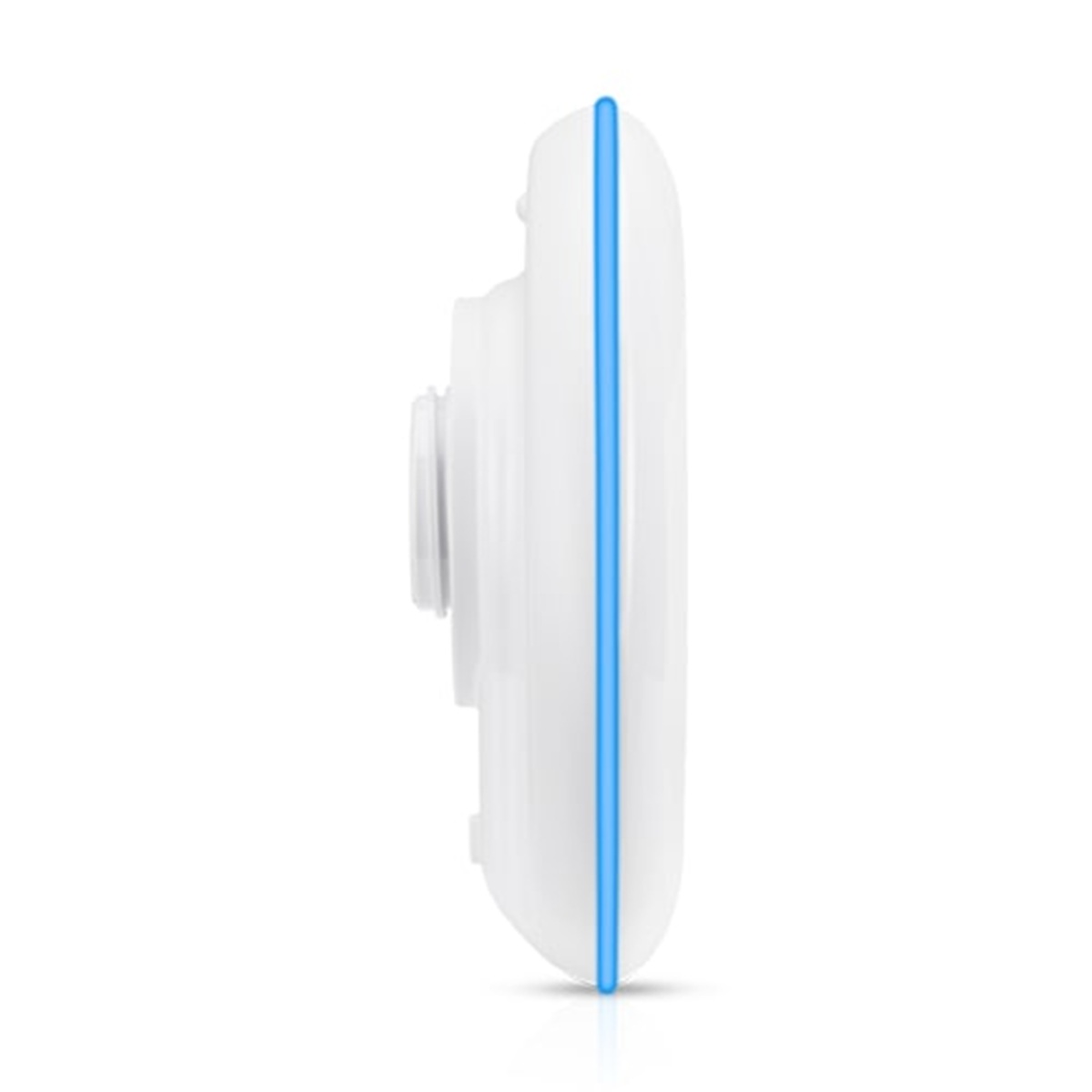

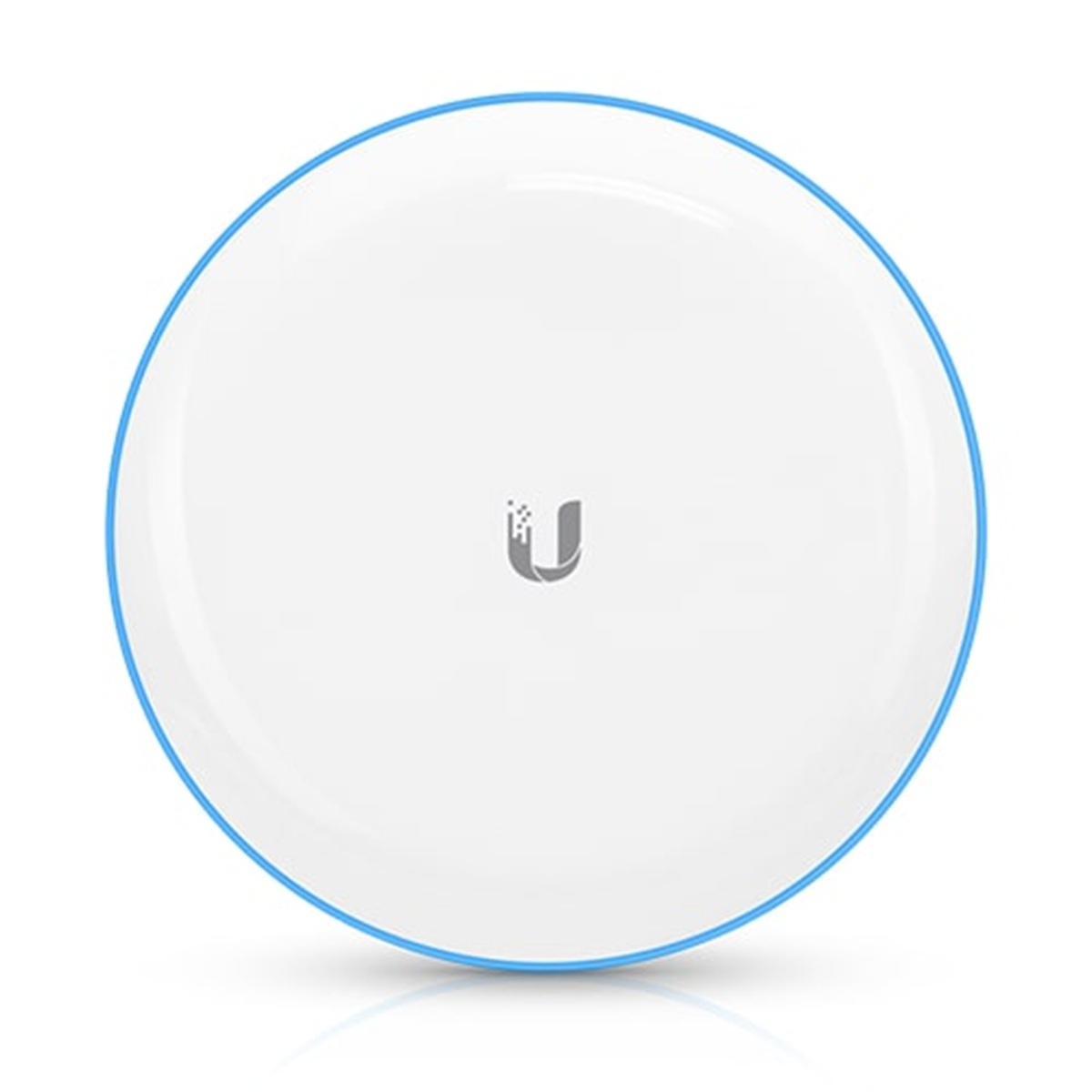

  The UBB is designed with a compact form factor for discreet integration into any environment.
• Convenient Alignment

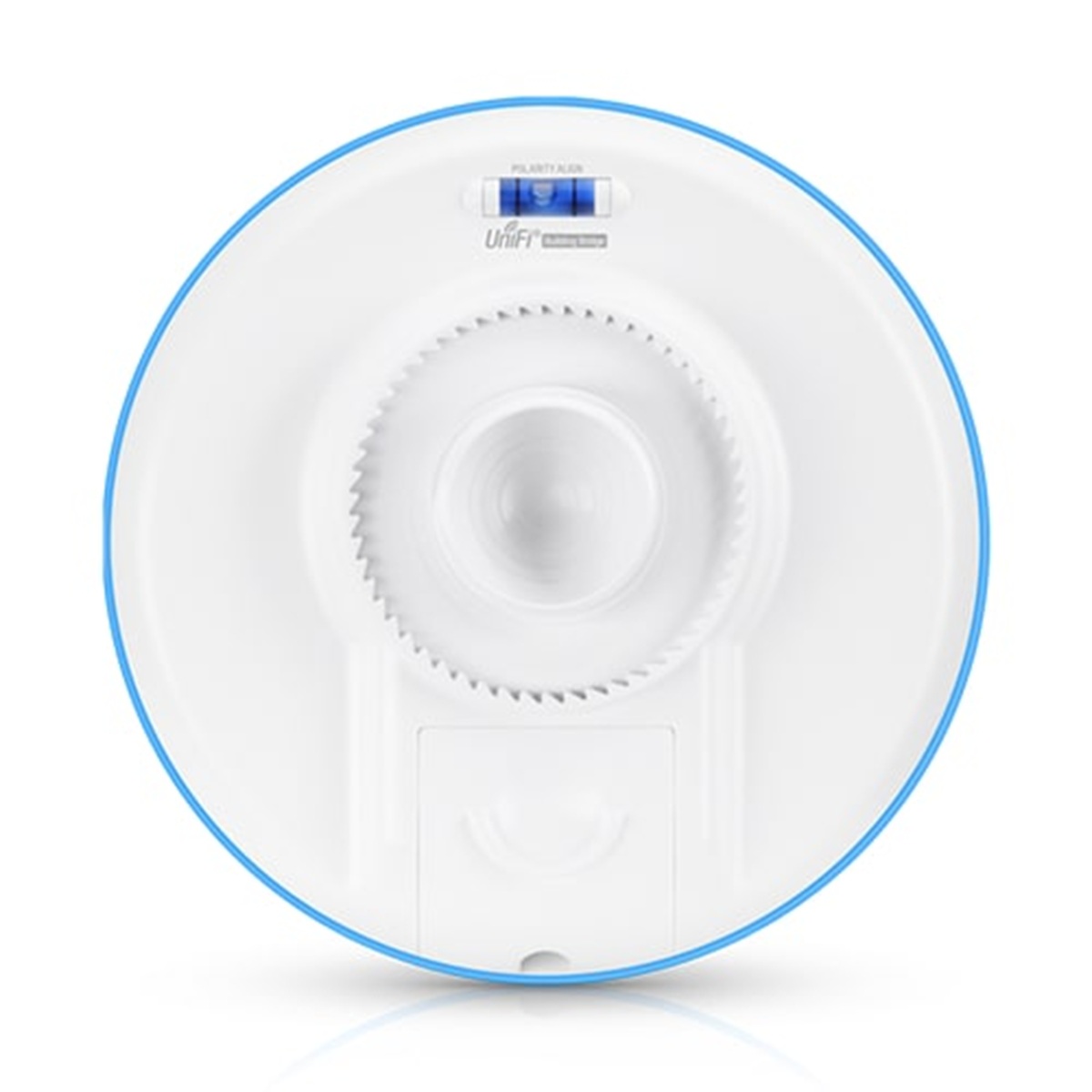

  The UBB pivots on its ball joint 3-axis mount for easy aiming.
• Mounting Versatility
  No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting. The NBE-WMK wall mount kit (sold separately), is available as an optional accessory to enhance stability.

Specifications
