Mechanical

Dimensions

• 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2 in.)

Weight

• 520 g (1.1 lb.)

Enclosure material

• Polycarbonate

Hardware

Processor

• Quad-core ARM Cortex-A53 at 1.5 GHz

System memory

• 3 GB DDR4

On-board storage

• 16 GB eMMC

Management interface

• Ethernet
• Bluetooth

Networking interface

• LAN:
  • (4) GbE RJ45 ports
• WAN:
  • (1) 1/2.5 GbE RJ45 port

IDS/IPS throughput

• 1 Gbps

Power method

• USB type C (5V DC/3A)

Supported voltage range

• 100–240V AC

Max. power consumption

• 6.2W

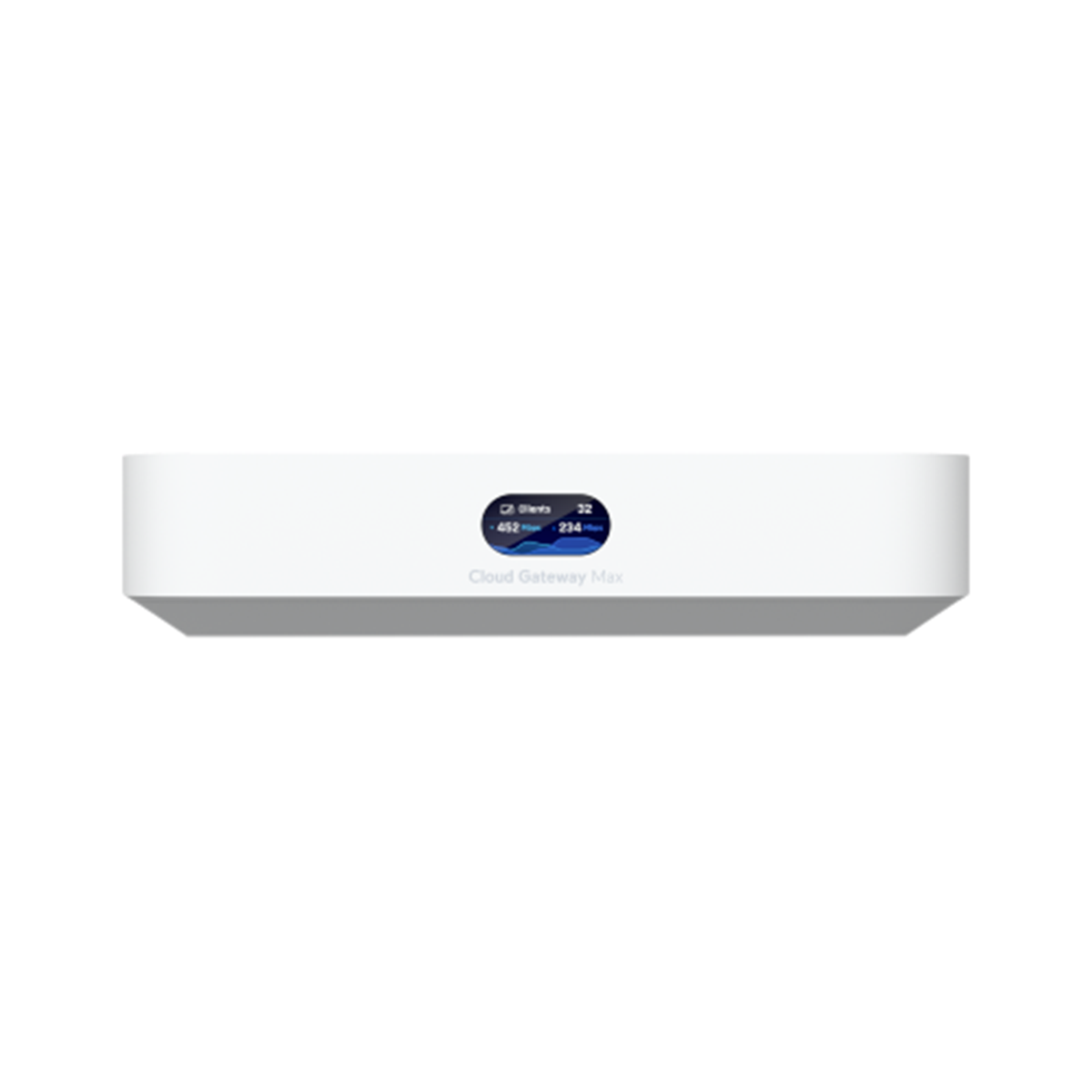

LCM display

• 0.96-in status display

Button

• Factory reset

Operating temperature

• -10°C to 40°C (14°F to 104°F)

Operating humidity

• 5% to 95% noncondensing

Certifications

• CE, FCC, IC

Gateway Features

Performance

• Redundant WAN with failover and load balancing
• WiFi QoS with UniFi APs
• Application, domain, and country-based QoS
• Application and device type identification
• Additional internet failover with LTE Backup
• Internet quality and outage reporting

Next-generation security

• Application-aware firewall rules
• Signature-based IPS/IDS threat detection
• Content, country, domain, and ad filtering
• VLAN/subnet-based traffic segmentation
• Full stateful firewall

Advanced networking

• Licence-free SD-WAN
• WireGuard, L2TP and OpenVPN server
• OpenVPN client
• OpenVPN and IPsec site-to-site VPN
• One-click Teleport and Identity VPN
• Policy-based WAN and VPN routing
• DHCP relay
• Customizable DHCP server
• IGMP proxy
• IPv6 ISP support

LEDs

Ethernet

• Green: link/activity

Application Requirements

Mobile app

• UniFi iOS: Version 10.12.0 and later
• UniFi Android: Version 10.11.2 and later

Standard Warranty: 1-Years
