Mechanical

Dimensions

• Ø 118 x 111 mm (Ø 4.6 x 4.4 in.)

Weight

• 990 g (2.2 lb.)

Enclosure material

• Aluminium alloy, polycarbonate

Weatherproofing

• IP66

Resistance

• IK08

Cable jacket enclosure dimensions

• Ø 20 x 70.6 mm (Ø 0.8 x 2.8 in.)

Cable jacket enclosure material

• Thermoplastic elastomer, polycarbonate, silicone rubber

Cable length

• 30 cm (1 ft.)

Cable diameter

• 4.5 mm (0.2 in.)

Cable jacket material

• Thermoplastic elastomer

Cable connector type

• RJ45

Optics

Sensor

• 1/1.8″ 8MP

Lens

• Fixed focal length

View angle

• H: 109.9°, V: 56.7°, D: 134.1°

Night mode

• Built-in IR LED illumination and IR cut filter

IR distance

• 40 m (131 ft.)

Video

Resolution

• 8MP 3840 x 2160 (16:9)

Max. frame rate

• 30 FPS

Image settings

• Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR

System

Processor

• Quad-core Arm Cortex-A53 based chip

Networking interface

• GbE RJ45 port

Max. power consumption

• 20W

Power method

• PoE+

Supported voltage range

• 42.5–57V DC

LED

• R/G/B/W ring
• Floodlight: 400lm

Button

• Factory reset

Mounting

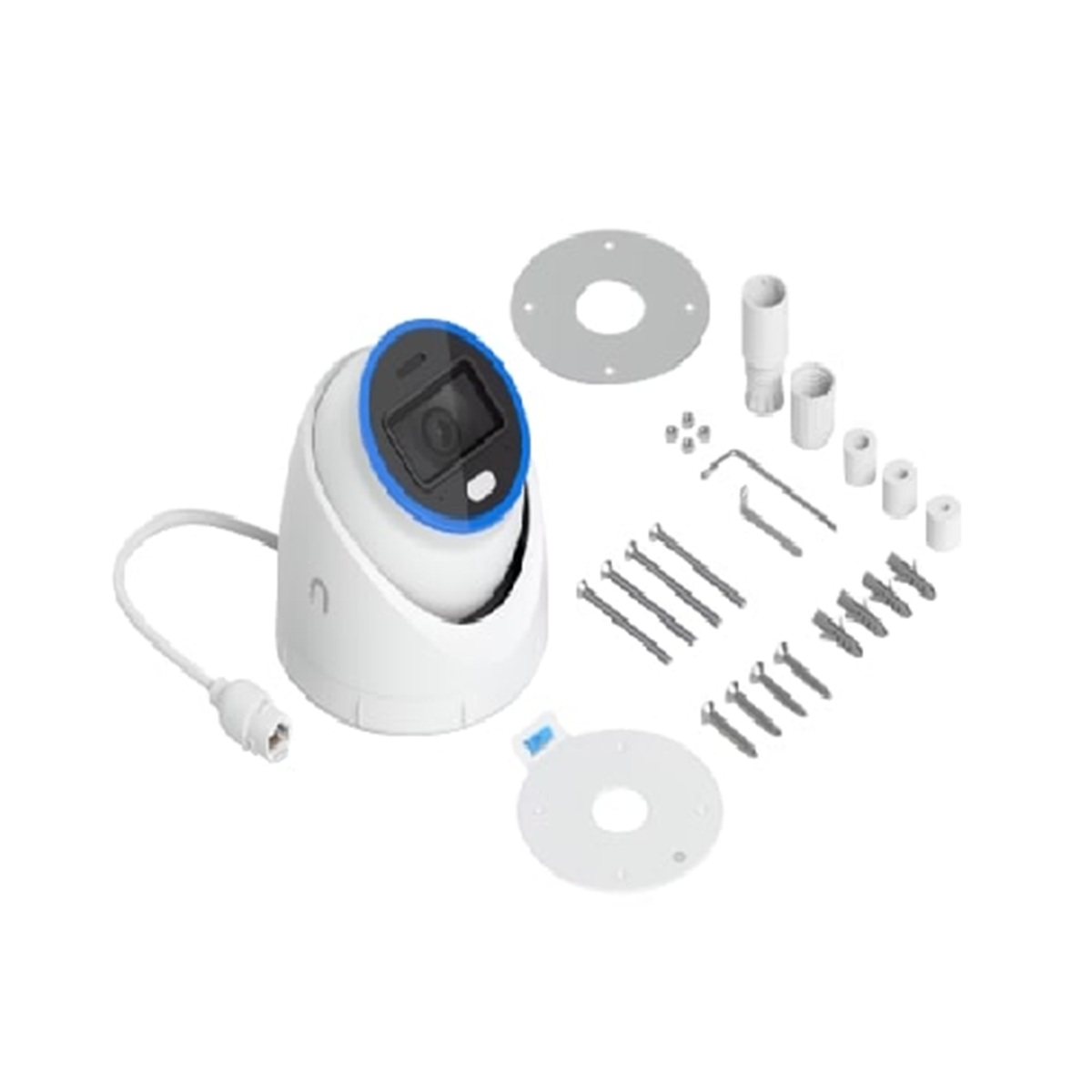

• Ceiling, wall (Included)
• Arm, pendant mount, junction box (Sold separately)

Ambient operating temperature

• -30°C to 50°C (-22°F to 122°F)

Ambient operating humidity

• 10% to 90% noncondensing

Certifications

• FCC, IC, CE

Audio

Microphone

• Yes (Can be disabled)

Speaker

• Yes (Can be disabled)

2-way audio

• Yes, with noise cancellation

Software

Web application

• UniFi Protect

Mobile app

• UniFi Protect iOS and Android

Standard Warranty: 1-Years
