Specifications
Overview
Dimensions
- 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2″)

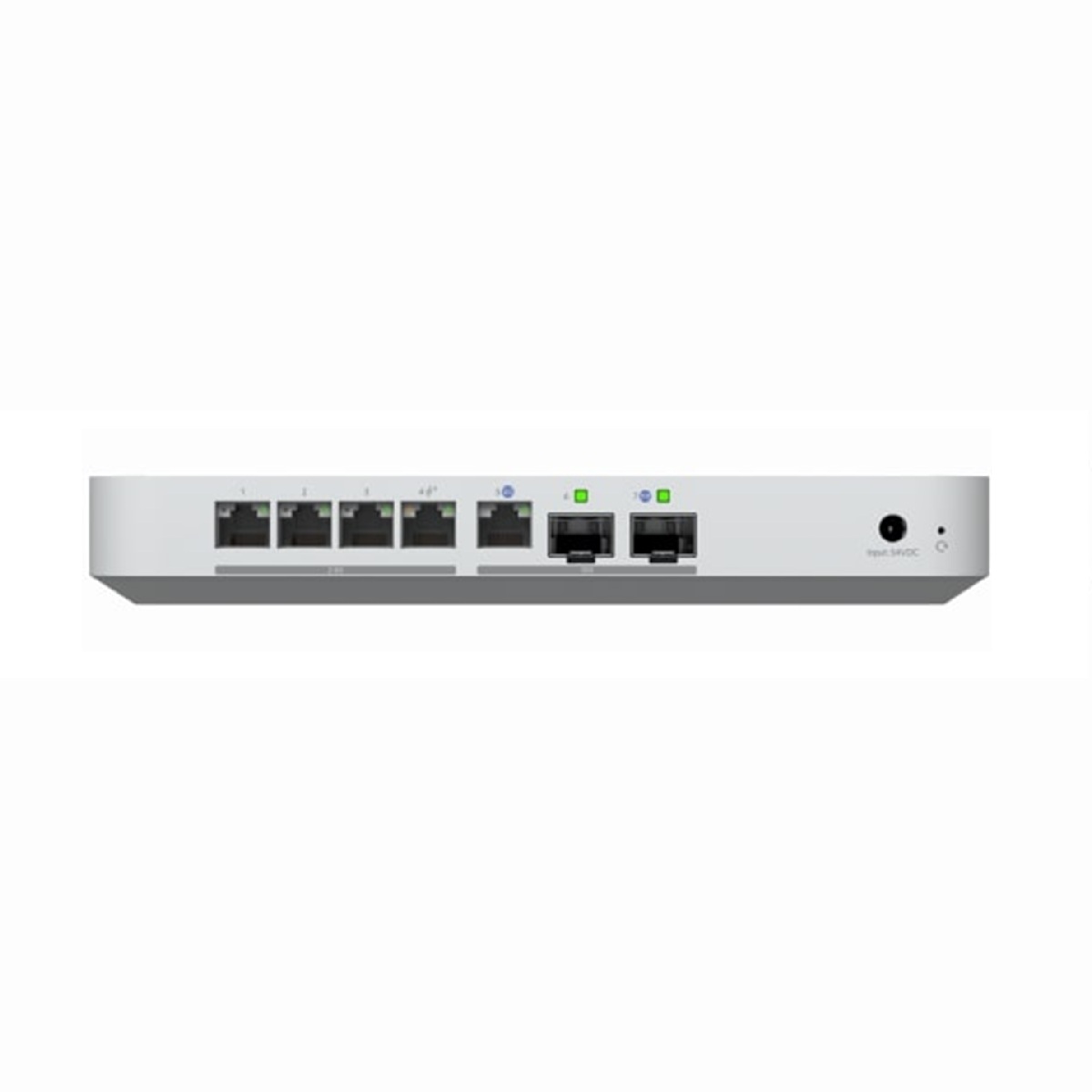

Default WAN Ports
- 1 x 10G SFP+
- 1 x 10 GbE RJ45
LAN Ports
- 1 x 10G SFP+
- 4 x 2.5 GbE RJ45
IDS/IPS Throughput
- 5 Gbps
Form Factor
- Compact desktop
Security
Stateful Firewall
- Yes
Application-Aware Layer 7 Firewall
- Yes
DPI & Traffic Identification
- Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
- Yes
Content Filtering
- Yes
Intrusion Prevention (IPS/IDS)
- Yes
Ad Blocking
- Yes
IDS/IPS Signatures
- 55,000+ with CyberSecure (subscription required, not included)
VPN & SD-WAN
Licence-Free SD-WAN
- Yes
Site-to-Site VPN
- Site Magic: Yes
- IPsec: Yes
- OpenVPN: Yes
VPN Server
- Teleport Zero-Configuration VPN: Yes
- WireGuard: Yes
- OpenVPN: Yes
- L2TP: Yes
VPN Client
- OpenVPN: Yes
- WireGuard: Yes
Networking
Multi-WAN Load Balancing
- Yes
Dynamic Routing
- OSPF: Yes
Advanced QoS
- Yes
Multicast DNS (mDNS)
- Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
- Yes
Integrated RADIUS Server
- Yes
RADIUS over TLS (RadSec)
- Yes
Additional Internet Failover with UniFi LTE Backup
- Yes
Internet Quality and Outage Reporting
- Yes
MAC Address Table Size
- 4,000
Hardware
PoE Budget
- 30W
Max. PoE Wattage per Port by PSE
- PoE+ (30W)
Voltage Range PoE Mode
- 50-57V
Max. Power Consumption
- 25W (excluding PoE output)
Power Method
- DC jack (54V DC/1.1A)
Power Supply
- 54V DC/1.1A (adapter included)
Supported Voltage Range
- 100-240V AC
Processor
- Quad-core ARM Cortex-A73 at 2.2 GHz
System Memory
- 2 GB
Weight
- 605 g (1.3 lb)
Enclosure Material
- Polycarbonate
Management
- Ethernet
- Bluetooth
LEDs
- Ethernet: Yes
- SFP+: Yes
- System: Yes
ESD/EMP Protection
- Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
Ambient Operating Humidity
- 5 to 95% noncondensing
Certifications
- CE, FCC, IC
Button
- 1 x Factory-reset
